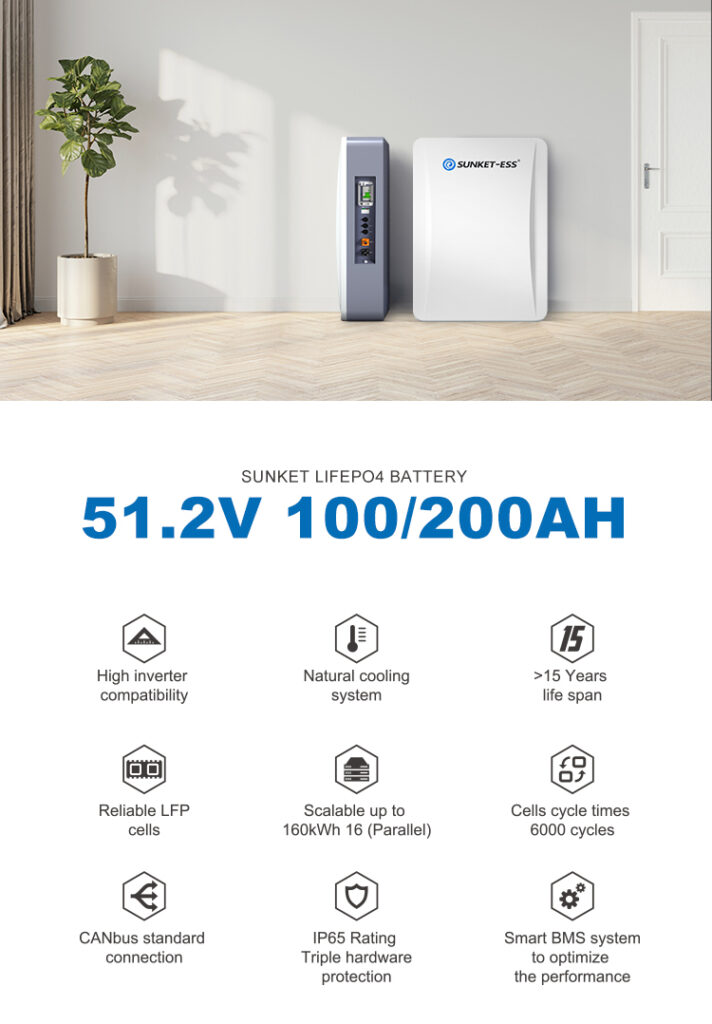

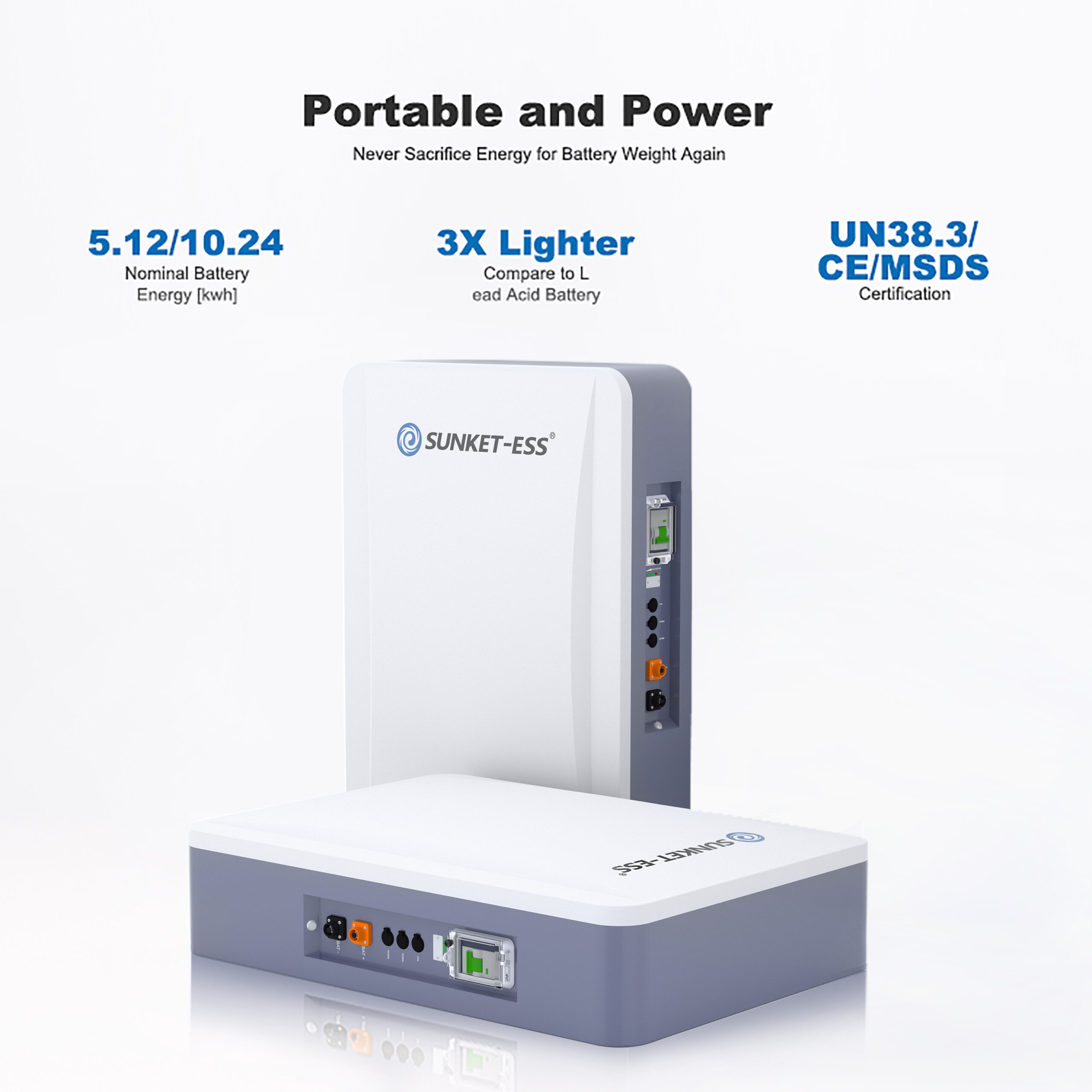

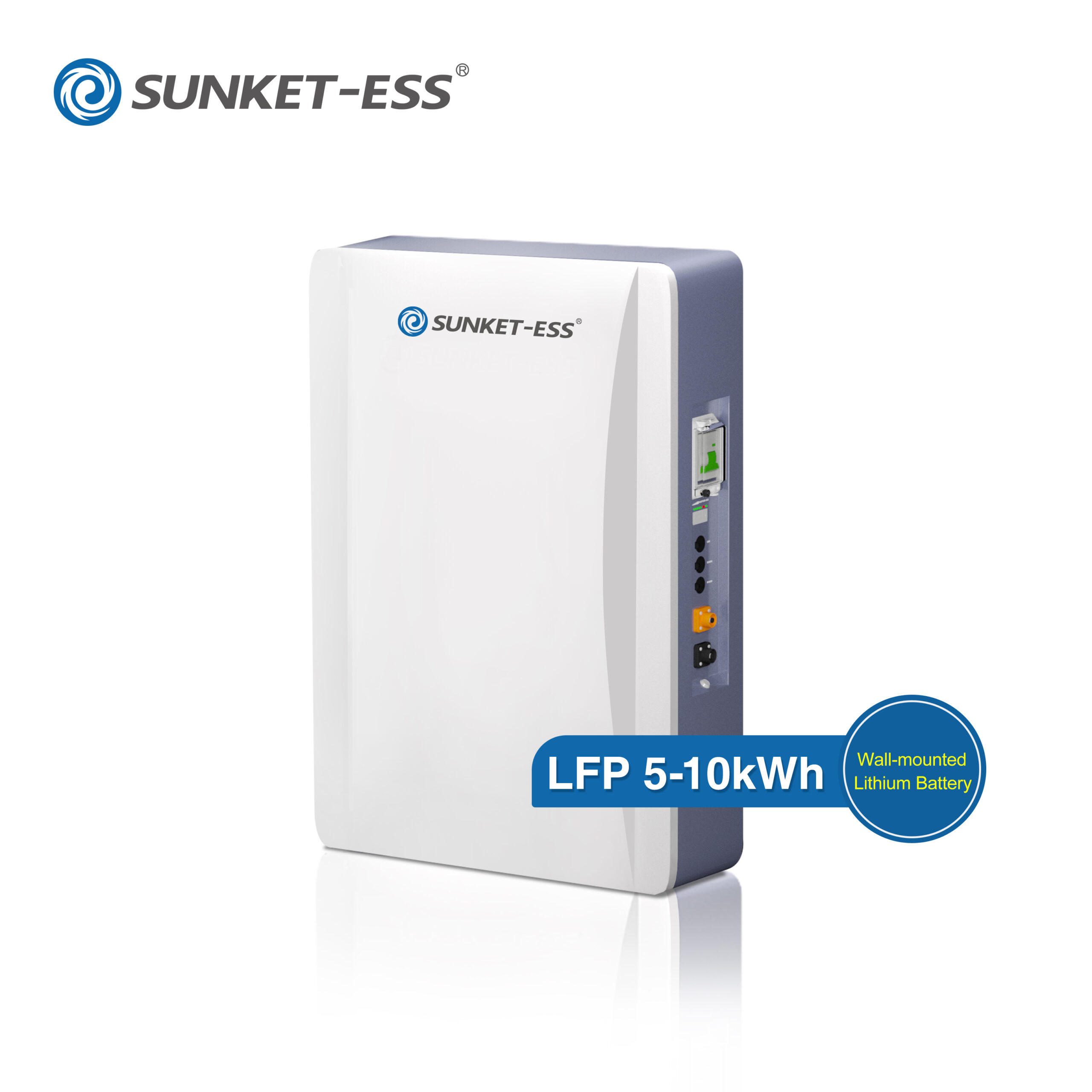

Sunket Wall-Mounted 5kWh 10kWh Lithium Battery Low Voltage Solar with Home Appliance Application LiFePO4

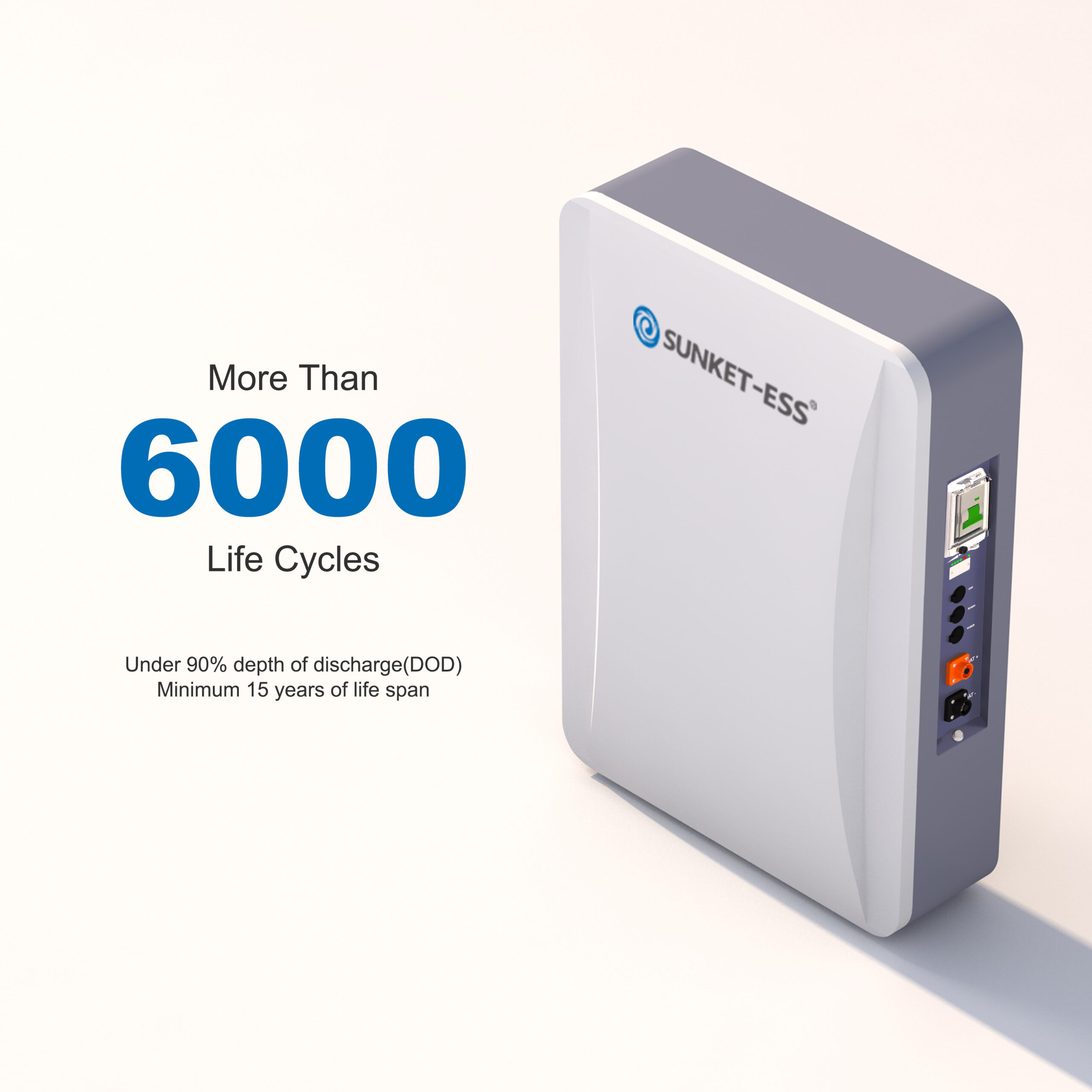

- Long-Lasting Storage: Sunket 5kWh/10kWh LiFePO4 battery, up to 6000 cycles.

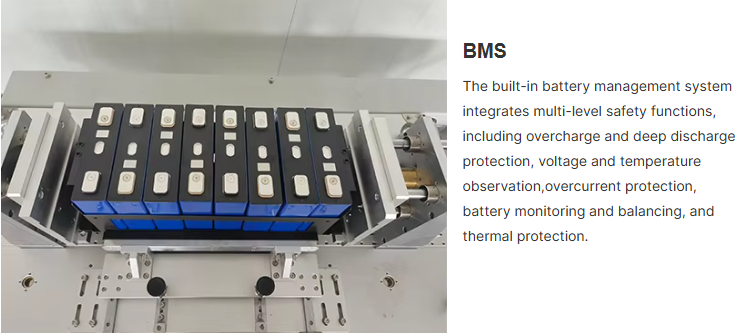

- Safety Features: Built-in BMS for secure charging/discharging.
- Compatible: Works with various voltages, including 51.2V.
- Compact Design: 490(550)x650(700)x196(216)mm, 58kg.
- Shipping: Available via DHL, UPS, FedEx, and more.
Description
Overview
Technical specifications
Product Details
We are SUNKET
We are SUNKET, based in California, USA. We provide high-quality solar products and solutions for utilities, commercial, and residential sectors. As an authorized MEGAREVO distributor, we ensure fast delivery of reliable inverters from our local warehouse.
- Chino CA 91710

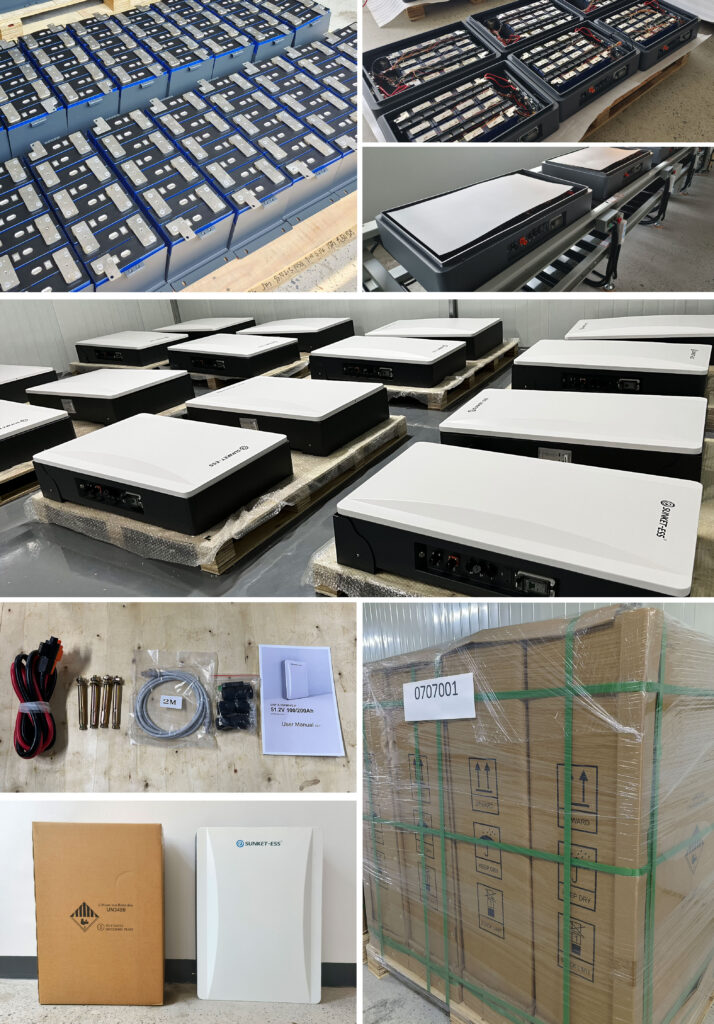

Product Packaging
| Module Type | LFP 5kWh/LV | LFP 10kWh/LV |
| Nominal Capacitance | 100Ah | 200Ah |
| Total Energy* | 5.12kWh | 10.24kWh |
| Usable Energy(DC)* | 4.6kWh | 9.2kWh |
| Nominal Dis-/Charge Power | 2.5kW | 5kW |
| Peak Power(Only Discharge) | 2.9kW for 3 seconds | 5.8kW for 3 seconds |
| Constant Current(only Discharge) | 50A | 100A |
| Voltage | 48~56Vd.c | 48~56Vd.c |
| Nominal Voltage | 51.2Vd.c | 51.2Vd.c |
| Max. Charge Voltage | 59.2V+0.5V d.c | 59.2V+0.5V d.c |
| Weight | 65kg | 116.5kg |
| Dimension(mm) | 490(550)*650(700)*196(216)mm | 585(645)*940(995)*205(225)m m |
| Safety | CE,UN38.3,IEC62619,IEC63056 | CE,UN38.3.IEC62619.IEC63056 |
| Max.recommended DOD | 90% | |
| Operating Condition | Indoor or outdoor | |
| Operating Charge | From 0~45℃ | |
| Temperature Discharge | From -10~50°℃ | |
| Humidity | 4~100% (No condensed water) | |
| Pollution Degree | 3 | |
| Over Voltage Category | II | |
| Cooling Type | Natural cooling | |
| Case Material | Metal+Plastic | |
| IP rating | IP 65 | |
| Protective Class | I | |
| Max.Number of Parallel | 16 | |
| Warranty | 10 years | |
| Life Span | >15 years | |
| Communication | CAN/RS485 | |
| Protection Mode | Triple hardware protection | |
| Battery Protection | Over-current/Over-voltage/Short circuit/ Under-voltage | |
| Hazardous Material Classification | 9 | |
Description
Overview
Technical specifications
Product Details
We are SUNKET
We are SUNKET, based in California, USA. We provide high-quality solar products and solutions for utilities, commercial, and residential sectors. As an authorized MEGAREVO distributor, we ensure fast delivery of reliable inverters from our local warehouse.
- Chino CA 91710
Product Packaging
| Module Type | LFP 5kWh/LV | LFP 10kWh/LV |
| Nominal Capacitance | 100Ah | 200Ah |
| Total Energy* | 5.12kWh | 10.24kWh |
| Usable Energy(DC)* | 4.6kWh | 9.2kWh |
| Nominal Dis-/Charge Power | 2.5kW | 5kW |
| Peak Power(Only Discharge) | 2.9kW for 3 seconds | 5.8kW for 3 seconds |
| Constant Current(only Discharge) | 50A | 100A |
| Voltage | 48~56Vd.c | 48~56Vd.c |
| Nominal Voltage | 51.2Vd.c | 51.2Vd.c |
| Max. Charge Voltage | 59.2V+0.5V d.c | 59.2V+0.5V d.c |
| Weight | 65kg | 116.5kg |
| Dimension(mm) | 490(550)*650(700)*196(216)mm | 585(645)*940(995)*205(225)m m |
| Safety | CE,UN38.3,IEC62619,IEC63056 | CE,UN38.3.IEC62619.IEC63056 |
| Max.recommended DOD | 90% | |
| Operating Condition | Indoor or outdoor | |
| Operating Charge | From 0~45℃ | |
| Temperature Discharge | From -10~50°℃ | |
| Humidity | 4~100% (No condensed water) | |
| Pollution Degree | 3 | |
| Over Voltage Category | II | |
| Cooling Type | Natural cooling | |
| Case Material | Metal+Plastic | |
| IP rating | IP 65 | |
| Protective Class | I | |
| Max.Number of Parallel | 16 | |
| Warranty | 10 years | |
| Life Span | >15 years | |
| Communication | CAN/RS485 | |
| Protection Mode | Triple hardware protection | |
| Battery Protection | Over-current/Over-voltage/Short circuit/ Under-voltage | |
| Hazardous Material Classification | 9 | |
